Stamping dies play a vital role in metal fabrication by shaping and cutting metal sheets into precise forms. In this article, we will discuss 1 output the five main process technologies of stamping die. You will learn about their unique benefits and applications, helping you understand which method suits your needs.
Key Takeaways
- Progressive die stamping automates high-volume production through sequential operations, making it efficient and cost-effective, though may incur high initial design costs.
- Transfer die stamping is suitable for intricate designs and large components but is slower than progressive die stamping due to its multiple independent processes.
- Future trends in stamping die technologies include the integration of AI and automation, enhancing efficiency and precision while reducing manual labor and defects.

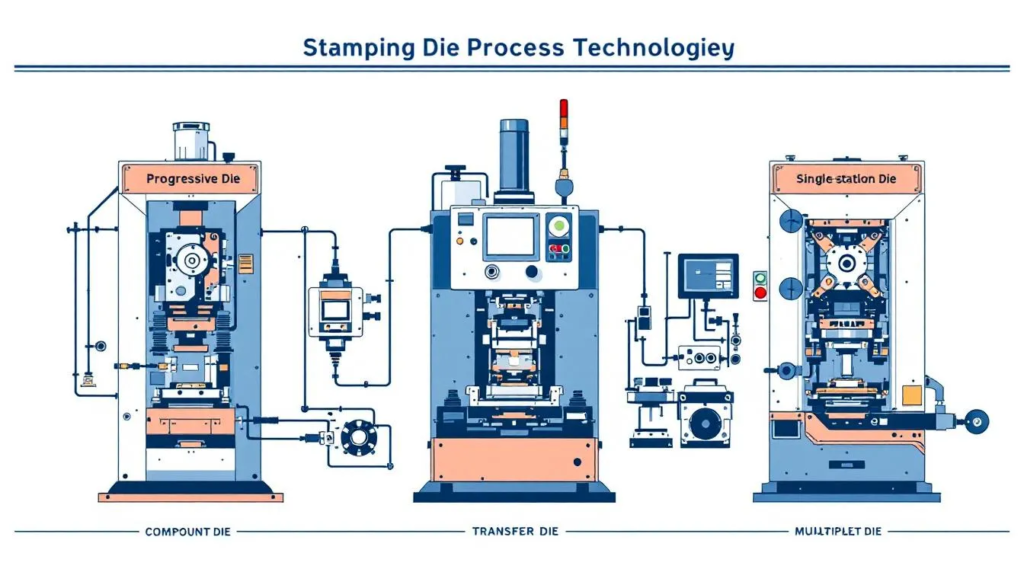

Output: The Five Main Process Technologies of Stamping Die Explained
The world of metal stamping is vast and varied, with each method offering unique advantages. Progressive die stamping stands out for its ability to pass metal through a series of forming dies automatically, making it a powerhouse for high-volume production. Each step in progressive die stamping runs continuously without a break, making the process highly efficient for large-volume manufacturing.
The sheet pressing principles, features, and operational terms can be broken down for a comprehensive understanding. Metal stamping operations, which form the backbone of this intricate process, include:
- Blanking
- Cutting
- Piercing
- Drawing
- Bending
- Flanging
The process carries each metal part through various stages, with each operation performed at the next station in the sequence, ensuring a smooth transition to the next stage of production.
From cost-effective bulk production to the creation of complex shapes—parts that are created through specific stamping operations—metal stamping ensures that every finished part meets stringent quality standards. Metal stamping can also produce detailed structures for various applications. Ensuring all processes are complete is crucial for accurate performance tracking.
Whether it’s hot stamping, which involves heating metal sheets, or cold stamping, which maintains a constant mechanical profile without heat, each method brings something unique to the table. Effective process management and operational discipline are crucial for business performance in metal stamping.
Introduction
Stamping dies are the unsung heroes in the realm of metal fabrication, enabling the efficient shaping and cutting of metal sheets into precise components. The design process for these dies is a meticulous journey, often beginning with CAD modeling to achieve unparalleled accuracy before production. A skilled team of engineers and quality assurance professionals plays a crucial role in delivering precise stamped components. Made from hardened steel or carbide, these dies promise durability and precision, essential for long-term use.
Imagine the efficiency boost in production when you can rapidly and accurately manufacture metal parts. This is the promise that stamping dies deliver, making them indispensable in various industries. From automotive to aerospace, the impact of stamping dies is profound, ensuring that every component is crafted to perfection.

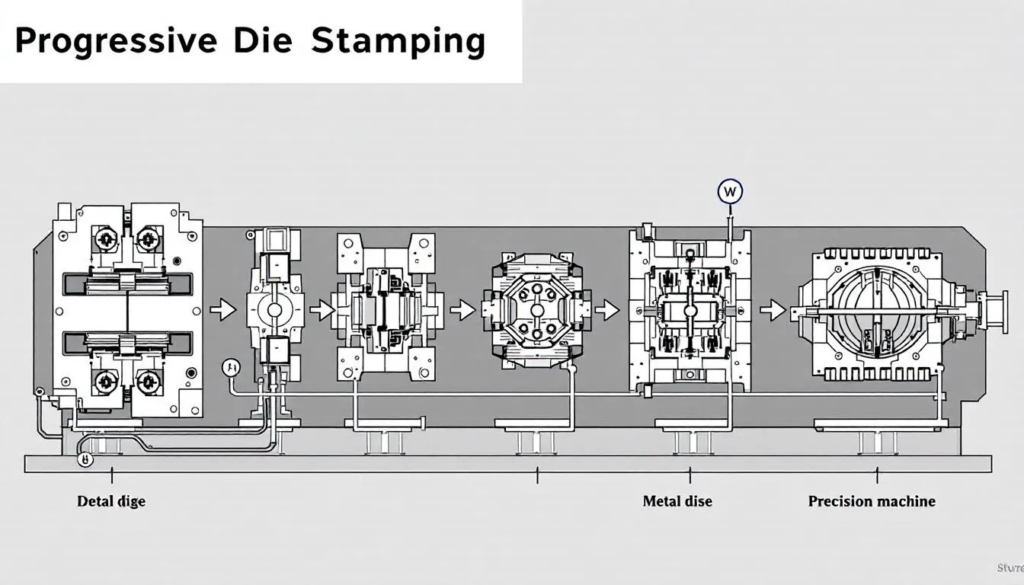

Progressive Die Stamping Technology
Progressive die stamping is a marvel of modern manufacturing. This technique automatically passes metal through a series of forming dies, making it integral to producing high-quality metal components efficiently. The process begins with blanking, where a small material portion is cut from a large sheet, forming the outer profile of the stamped component.
The magic continues as the metal undergoes drawing operations to create complex shapes and features. The durability of the dies, typically made from tool steel or other hard, wear-resistant metals, ensures that this process can be repeated countless times with precision. However, like all methods, it has its challenges, such as minor irregularities that can compromise the overall quality.
Sequential Operations
In progressive die stamping, a metal coil is fed into the mold, marking the beginning of a meticulously orchestrated process. Each die station performs a specific task, such as cutting or bending, progressively shaping the metal component into its final form. After each operation, the metal moves to the next station for further processing, ensuring a continuous and efficient workflow. This sequential approach ensures that each operation is carried out with precision, thanks to automated feeding mechanisms that position the metal strip accurately at each station. The process ensures a smooth transition to the next stage, minimizing delays and maintaining overall efficiency.
Automation plays a critical role, significantly reducing manual labor and enhancing safety by minimizing human interaction with machinery. The precision of progressive die stamping is ensured by aligning designs with a guide post before each operation, guaranteeing that every part meets the highest standards.
Benefits of Progressive Dies
Progressive die stamping is a game-changer in the world of manufacturing. It allows for the continuous production of large orders of repeatable parts quickly, minimizing scrap material and maximizing the efficient use of raw materials during progress.
This method is not only efficient but also cost-effective, making it a preferred choice for high-volume production needs that have been completed, providing great value.
Transfer Die Stamping Technology
Transfer die stamping is another essential technology in the metal stamping world. Unlike progressive die stamping, where the metal strip remains intact throughout the process, transfer die stamping separates the metal part from the strip at the start, treating each part as an individual unit. This method is highly suitable for producing larger components, thanks to its ability to handle bigger pieces effectively.
Cost-effectiveness is one of its significant advantages, as it does not require a sheet guide, reducing tooling costs. Additionally, it excels in creating intricate designs and deep-drawn components, making it a versatile choice for various applications.
Continuous Operation
The continuous operation nature of transfer die stamping is one of its standout features:
- Metals are fed continuously into the mechanism, ensuring an uninterrupted production flow.
- As soon as one piece exits, the next one is fed in.
- This maintains a seamless operation that is highly automated and efficient.
This integration into production lines enhances overall productivity and reduces downtime.
Intricate Designs
Transfer die stamping shines in creating complex shapes and deep-drawn parts efficiently at this stage. It is particularly adept at producing intricate designs, tubes, and deep-drawing metal components, thanks to its ability to support focus on moving parts between different workstations.
This capability allows for the formation of detailed and precise parts, making it ideal for projects that require a high level of design complexity and structure expertise.
Compound Die Stamping Technology
Compound die stamping is known for its ability to perform multiple operations, such as cutting, punching, and bending, simultaneously. This simultaneous execution enhances production efficiency, allowing for the rapid manufacturing of parts in a single stroke. While progressive die stamping is suited for more complex designs, compound die stamping excels in producing simpler parts with speed and precision.
This technology is particularly effective in high-volume production, where the ability to perform multiple operations in a single stroke significantly boosts productivity. It is a cost-effective solution for manufacturing simple components, ensuring that every part is produced to meet exact specifications.
Single Stroke Efficiency
The efficiency of compound die stamping lies in its ability to cut, bend, and form a part in a single stroke. This approach enhances productivity by executing multiple processes simultaneously, making it a cost-effective solution for high-volume production.
The single-stroke method ensures that each part is produced quickly and accurately, meeting the demands of modern manufacturing.
Ideal Applications
Compound die stamping is well-suited for producing simple, flat parts such as brackets and housings. It excels in speed and efficiency, making it ideal for manufacturing components like washers that require precision and can be produced in a streamlined process.
This technology combines the advantages of single punch and progressive dies, facilitating moderate design complexity and ensuring high-quality results.
Fine Blanking Technology
Fine blanking is a precision stamping technique characterized by:
- Operation under significantly elevated pressures, ensuring cleaner cuts and enhanced edge precision.
- Delivery of components with exceptional surface finishes and precise dimensions.
- Preference in industries that demand high accuracy.
- Use of hydrostatic pressure to further enhance precision.
- Production of parts that often do not require additional processing.
The advantages of fine blanking include reduced production costs and improved surface quality compared to traditional methods. Industries such as automotive, aerospace, and electronics frequently utilize fine blanking for producing intricate components like gears and electrical contacts.
High-Pressure Precision
Fine blanking applies pressure both from above and below the workpiece, minimizing clearance and ensuring superior edge quality and dimensional accuracy. This high-precision machining is ideal for parts that require exact tolerances, making fine blanking a critical technology in metal stamping.
The ability to deliver micron-level precision sets fine blanking apart from other stamping methods.
Application Examples
Fine blanking is widely used in industries such as automotive, medical, and electronics for high-precision parts. For example, it is used to produce complex shapes like gears and electrical contacts without the need for secondary operations, saving both time and costs.
Materials like stainless steel, aluminum, and copper alloys are commonly used in fine blanking due to their desirable properties.
Deep Drawing Stamping Technology
Deep drawing stamping is a fascinating process that begins with a flat metal piece, known as a blank, placed over a die and shaped by a punch. This method enables the creation of seamless sheet metal parts that maintain consistent thickness throughout the forming process. It excels in producing hollow shapes and complex geometries efficiently, making it a vital technology in various industries.
Achieving high depth-to-diameter ratios is crucial for producing components with thin walls, often required in applications such as automotive and aerospace. Deep drawing stamping ensures that these components are manufactured with precision, maintaining structural integrity and uniform thickness.
Punch Mechanism
The punch mechanism in deep drawing is instrumental in shaping the metal, applying force to the metal sheet to form it into the desired final shape while maintaining the material’s original thickness. This requires careful control of the materials and principles of processes to prevent issues like wrinkling or tearing during production.
The precision of the punch ensures that each focused part meets the stringent requirements of industries that rely on deep drawing.
Depth-to-Diameter Ratios
Deep drawing stamping allows for the production of components with high depth-to-diameter ratios, often exceeding 2:1. This capability is crucial for applications that require thin-walled components with complex shapes. The ability to achieve such ratios ensures that deep drawing stamping can produce parts that meet the precise requirements of various industries, from automotive to consumer electronics.
Stamping Die Design and Maintenance
The success of any metal stamping operation hinges on the quality of its stamping die design and the rigor of its maintenance routine. A well-designed die not only streamlines the stamping process but also ensures that each metal component meets strict quality standards. Conversely, neglecting die maintenance can lead to costly downtime, inconsistent results, and a painful mess of rejected parts.
Key Design Principles
Effective stamping die design is built on a foundation of proven principles that support both performance and longevity. Here are some critical considerations:
- Progressive die stamping: Leveraging progressive die stamping in your design allows for multiple operations—such as cutting, bending, and forming—to be performed in a single, continuous process. This approach is well suited for high-volume production and helps achieve consistent quality across thousands of parts.
- Die material selection: Choosing the right material for your die is essential. Tool steels and carbides are popular choices due to their ability to withstand the intense pressures and repeated impacts involved in the stamping process. The right material extends die life and maintains the precision needed for high-quality output.
- Die geometry: The shape and structure of the die must be engineered to guide the sheet metal accurately through each stage, ensuring the final product matches the intended design. Proper geometry also helps distribute stress evenly, reducing the risk of premature wear or failure.
- Clearance control: Maintaining the correct clearance between the die and the workpiece is critical. Too much clearance can result in poor edge quality, while too little can damage both the die and the material. Precision in this area is key to achieving clean cuts and reliable forming.
By focusing on these principles, businesses can create stamping dies that deliver high performance, support continuous improvement, and help achieve project goals.
Maintenance Best Practices
Even the best-designed die requires regular care to maintain its performance and ensure the quality of every stamped part. Here are some best practices for die maintenance:
- Routine cleaning: Keeping the die free from debris and residue is essential for smooth operation. Regular cleaning prevents buildup that can affect the stamping process and compromise part quality.
- Proper lubrication: Applying the right lubricants reduces friction and wear, helping the die operate efficiently and extending its service life.
- Scheduled inspections: Regularly inspecting the die for signs of wear, cracks, or misalignment allows teams to address issues before they escalate. Early detection and prompt repairs are critical to avoiding unexpected breakdowns.
- Optimal storage: When not in use, dies should be stored in a clean, dry environment to prevent corrosion and physical damage. Proper storage practices help preserve the die’s precision and readiness for the next production run.
By prioritizing both thoughtful design and diligent maintenance, companies can maximize the value of their stamping dies, minimize downtime, and consistently produce high-quality metal components.
Metal Stamping Materials and Surface Finishing
The choice of material and surface finishing technique plays a pivotal role in the metal stamping process, directly impacting the performance, appearance, and longevity of the finished part. Selecting the right sheet metal or alloy ensures that the stamped component meets the demands of its intended application, while the right finishing process enhances both durability and visual appeal.
Common Materials Used
Metal stamping is a versatile process that can create a wide variety of components from different materials. Some of the most commonly used materials include:
- Sheet metal: The backbone of many stamping operations, sheet metal is valued for its adaptability and cost-effectiveness. It is used to create everything from automotive panels to electronic enclosures.
- Aluminum: Lightweight and naturally resistant to corrosion, aluminum is a popular choice for industries such as aerospace and automotive, where reducing weight without sacrificing strength is a priority.
- Stainless steel: Known for its strength and resistance to rust, stainless steel is often used in environments where hygiene and durability are critical, such as medical devices and food processing equipment.
- Copper: With excellent electrical conductivity, copper is frequently chosen for electrical and electronic components, ensuring reliable performance in demanding applications.
Each material brings unique properties to the stamping process, allowing manufacturers to create components that are tailored to specific project requirements and performance targets.
Factors Influencing Stamping Die Selection
Selecting the right stamping die involves considering several critical factors. Material type plays a significant role, as different materials offer varying levels of durability, machinability, and resistance to wear. For instance, hardened tool steel is known for its durability, while aluminum offers excellent formability and is ideal for applications where weight is a concern. Balancing performance requirements with budget constraints ensures cost-effectiveness in production.
Design complexity is another crucial factor. Utilizing CAD/CAM and the latest software tools aids in designing stamped components with the necessary precision and complexity. Additionally, production volume influences die selection, as high-volume production methods like progressive die stamping enhance efficiency and reduce cycle times. Understanding these factors helps in selecting the most suitable die for specific manufacturing needs.
Material Type
The choice of material significantly impacts the stamping process. Hardened tool steel, with its durability and resistance to wear, is essential for extending the lifespan of stamping dies. Aluminum, despite its higher cost, is ideal for applications requiring lightweight and high corrosion resistance.
Understanding the specific properties of materials helps to identify all the information optimal performance and desired outcomes in stamping operations and resources.
Design Complexity
Design complexity can limit the stamping process, particularly in terms of the depth-to-diameter ratio, which affects material choice and part design. Advanced CAD/CAM tools are used to design intricate components, ensuring high precision and efficiency in production. Innovative ideas in die design have led to significant advancements in the industry.
These tools enable manufacturers to overcome design limitations and produce complex parts with tight tolerances. We encourage readers to share their own ideas for improving process design and efficiency.
Production Volume
Production volume is a key factor in selecting stamping dies. High-volume production methods, such as progressive die stamping, significantly reduce cycle times, making them suitable for producing large quantities of parts quickly. Long-run stamping is preferred for manufacturing over a thousand small parts, optimizing production efficiency and reducing costs. Negotiating a favorable deal for high-volume production can provide cost advantages and flexible terms, benefiting both manufacturers and clients.
Conversely, short-run stamping is ideal for prototypes or small batches due to its lower tooling costs.
Advantages and Disadvantages of Each Technology
Understanding the advantages and disadvantages of each stamping die technology is crucial for making informed decisions. Each technology offers distinct benefits, such as efficiency, cost-effectiveness, and capability for complex designs. However, it is essential to weigh both the pros and cons to select the most suitable option for specific production needs.
Evaluating these factors helps manufacturers choose the right technology that aligns with their key performance indicators and performance targets and project goals. Whether it’s the high-volume efficiency of progressive die stamping or the precision of fine blanking, each method has its unique strengths and weaknesses that must be considered.
Progressive Die Stamping
Progressive die stamping is renowned for its efficiency, allowing for high-volume production in shorter cycles. It is highly automated, making it well-suited for large-scale production with high repeatability and material efficiency.
However, the high initial cost of die design and production can be a barrier for small batch runs.
Transfer Die Stamping
Transfer die stamping excels in:
- Producing intricate designs with minimal material waste
- Being particularly suitable for deep-drawing components
- Facilitating continuous operation by moving parts seamlessly between stations
However, it tends to be slower compared to progressive die stamping, as it involves multiple independent processes.
Compound Die Stamping
Compound die stamping combines multiple operations into a single stamping press stroke, enhancing productivity and ensuring the completion of tasks efficiently. It is efficient for producing simple parts but may not be ideal for complex shapes.
Additionally, it may not be the best choice for mass production due to its inherent limitations.
Fine Blanking
Fine blanking is a high-pressure stamping technique that produces smooth-edged components with high accuracy in writing. It is widely used in industries such as automotive and electronics to produce components like gears and brackets.
However, the higher operational costs can be prohibitive for low-volume production.
Deep Drawing Stamping
Deep drawing stamping is praised for its ability to create components with precise dimensions and uniform thickness, enhancing structural integrity. However, it can lead to issues such as wrinkling and tearing if not properly controlled, posing a risk.
Despite these challenges, it remains an essential method in metalworking for producing high depth-to-diameter ratio components.
Future Trends in Stamping Die Technologies
The future of stamping die technologies is bright, with advancements in AI and automation leading the charge. High-tech equipment is set to automate the entire metal stamping process, reducing manual labor and increasing production capacity. This shift towards automation promises to enhance the accuracy and efficiency of manufacturing operations.
Optimizing current processes through innovation and improved system performance will further enhance productive output. These advancements will redefine the capabilities of stamping die technologies, ensuring that manufacturers can meet the ever-increasing demands of the industry.
AI Integration
Artificial intelligence is being utilized to enhance the quality and precision in stampings. AI algorithms can monitor and adjust the stamping process in real-time, ensuring that each part meets the highest standards of quality.
This integration of AI promises to revolutionize the metal stamping industry by reducing defects and improving overall efficiency.
Automation Advancements
Automation advancements, such as in-die sensors, are revolutionizing the stamping process by monitoring and adjusting for defects in real-time. Timely feedback allows for quick correction in production, minimizing poor results and enhancing process quality.
These advancements ensure that manufacturers can achieve the highest level of process optimization through continuous improvement for businesses, meeting the demands of modern manufacturing.
Summary
In conclusion, the five main process technologies of stamping die – progressive die stamping, transfer die stamping, compound die stamping, fine blanking, and deep drawing stamping – each offer unique advantages and applications. From high-volume production to precision manufacturing, these technologies are integral to the metal stamping industry. By understanding the strengths and weaknesses of each method, manufacturers can make informed decisions that align with their project goals and performance targets.
As we look to the future, advancements in AI and automation promise to further enhance the capabilities of stamping die technologies. Embracing these innovations will ensure that manufacturers can continue to meet the evolving demands of the industry, producing high-quality components with efficiency and precision. The journey of metal stamping is ever-evolving, and staying ahead of the curve is key to success.
Frequently Asked Questions
What is progressive die stamping?
Progressive die stamping is an efficient manufacturing method that processes metal through multiple forming dies in a sequence, enabling the high-volume production of intricate parts with consistent quality and minimal material waste.
How does transfer die stamping differ from progressive die stamping?
Transfer die stamping treats each metal part as an individual unit, allowing for the creation of larger and more intricate components, but is generally slower than progressive die stamping, which operates continuously on a strip without separating parts until the end.
What are the advantages of compound die stamping?
Compound die stamping enhances productivity by combining multiple operations into a single press stroke, making it efficient for producing simple, flat parts. However, it may not be suitable for complex shapes or high-volume production.
Why is fine blanking used in the automotive and electronics industries?
Fine blanking is employed in the automotive and electronics industries because it delivers high precision and smooth edges, which are essential for manufacturing components like gears and electrical contacts.
What future trends are emerging in stamping die technologies?
Integrating artificial intelligence and advancements in automation, like in-die sensors for real-time monitoring, are key trends emerging in stamping die technologies, enhancing quality and precision. This shift signifies a move towards more intelligent and adaptive manufacturing processes.
